LARGE DIMENSIONS PANEL AUTIOMATIC LOADER

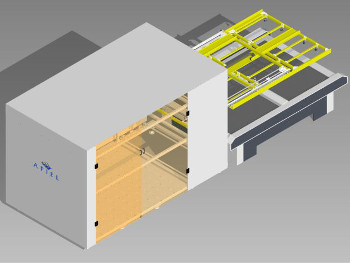

This type of machine allows the loading and unloading of large panels on flat bed machines. The main feature of the machine is its small footprint: the dimensions of the machine in plan are slightly higher than the dimensions of the sheet. The positioning group of the sheet is telescopic and during the working phases of the plotter or cutter it falls entirely into the shape of the machine. The panels to be worked are positioned in the lower part of the machine, while the machined ones are placed in the upper part. The panels are accessible from all sides of the machine. The transfer unit has a series of suction cups for attaching the panels.

Download the pdf sheet loader catalog

MODELS

The machine is made in 3 different models depending on the maximum size of the movable panel:

Model                      Max panel size          Max panel weight

• ACRAB-G 2500     1600 x 2500                  20 Kg
• ACRAB-G 3000     2000 x 3000                  30 Kg
• ACRAB-G 4000     2000 x 4000                  30 Kg
