AUTOMATIC PALLETS DISPENSER

Mettipallet 0-90 rotazione pneumatica Mettipallet 0-90° con rotazione elettrica del braccio Mettipallet 0-270° posizionamento falda e pallet Sfogliatore automatico europallet

Solaut produces automatic devices for feeding palletizing stations with empty pallets and with pallets and pallet slip sheet.
Our solutions are the pallets dispenser for feeding one or more palletizing stations (transporting the pallet with roller or chain conveyors). For the pallet supply of one or two palletizing stations, we can offer column pallet dispenser, which can also apply pallet slip sheet with a special gripping head. The column pallet dispenser can also be used in depalletising to remove the pallet slip sheet from the pallets being processed and to remove the pallet once it has been emptied.

The models we produce are:

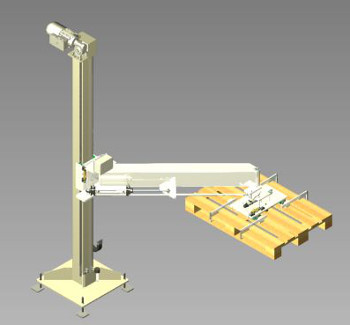

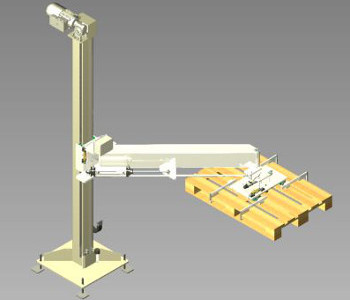

Column pallet dispenser with pneumatic rotation 0-90

0-90 PNEUMATIC PALLETS DISPENSER

Economical solution to position the pallet taken from the special containment basket on the palletizing station.
The machine can also be used to remove the emptied pallet, in depalletizing stations. Being the pneumatic arm rotation and being the important pallet mass, the cycle speed is not high and therefore the machine finds application in low / medium productivity plants.

Essential features:

  • Working as a dispenser or as a stacker
  • Vertical stroke on specification (max 5mt)
  • Column with support base or with brackets for attaching to the palletizer
  • Maximum arm center distance 2000mm
  • Angular travel adjustable from 57° to 102°
  • Maximum horizontal travel 2415mm with a 102° arm rotation
  • The pallet does not rotate during the rotation of the arm
  • Vertical movement realized with servomotor or asynchronous motor with or without positioner inverter
  • Vertically floating gripping head

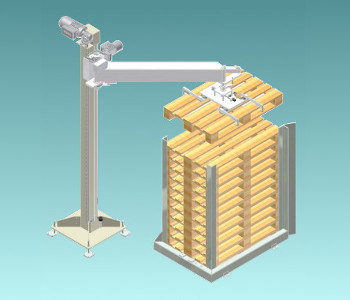

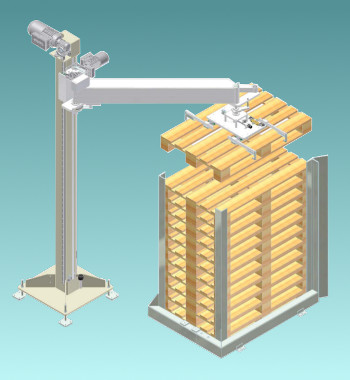

0-90 electric arm rotation pallets dispenser

0-90 ELECTRIC PALLETS DISPENSER

Machine with electric rotation of the arm, used to position the pallet, taken from the special containment basket, on the palletizing station.
The machine can also be used to remove the emptied pallet, in depalletizing stations. Since the electric rotation is carried out with electronic position control, the 0-90 pallet dispenser can be used in high speed applications and therefore the machine is used in high productivity plants. Motion control is performed with positioning inverter, controlled by a c300 PLC Lenze via fieldbus. Thanks to the real-time control of the motion parameters such as speed and accelerations, these can be adjusted by setup and are differentiated between movement with and without load to obtain the maximum cycle speed.
The arm can be positioned at any point on the horizontal plane within the limits 0°-95°.

Essential features:

  • Operation as a pallet dispenser or stacker/li>
  • Vertical stroke on specification (max 5mt)
  • Maximum arm center distance 2000mm
  • Position of gripping and release of pallets controlled by PLC
  • Maximum horizontal stroke 2828mm witb 90° arm rotation
  • The pallet does not rotate during the rotation of the arm
  • Movements made with a positioner inverter
  • Gripping head vertically floating

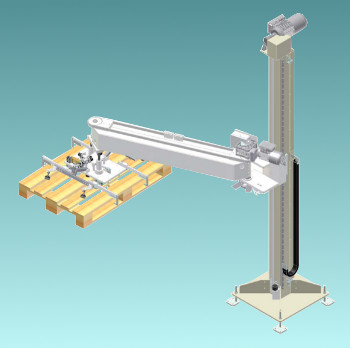

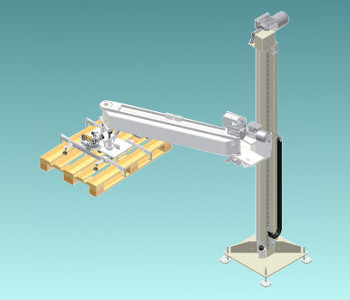

0-270° pallet dispenser, pallet and slip sheet pick

0-270 PALLET DISPENSER

The arm that carries the gripping head can rotate 270°, being able to position itself in any point of the stroke. Thanks to a timing belt drive the pallet gripping head does not rotate during the rotation of the arm. Thanks to the very large stroke, the pallet dispenser can be used to position the pallets on one or two pallet places or with a special pick-up head, it can position the empty pallet and also the slip sheet on one or two palletizing stations. The same pallet dispenser can also be used on one or two depalletizing stations to remove slip sheet and pallets at the end of depalletization.

Essential features:

  • Operation as pallet dispenser or as stacker
  • High positioning speed
  • Vertical travel on specification (max 5mt)
  • Maximum arm center distance 2000mm
  • Maximum horizontal stroke 4000mm witt 180° arm rotation
  • Speed adjustable from operator panel
  • Movements made with two 250 and 750W motors
  • Plc, Lenze positioning inverters and motors
  • Vertically floating gripping head
  • Gripper head for pallets or pallets and slip sheets

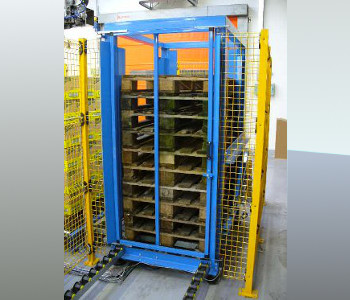

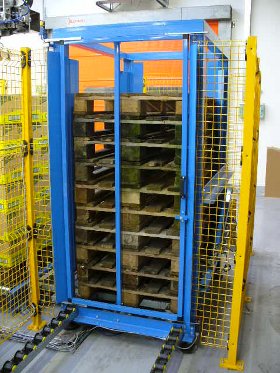

Magazzino automatico pallet con carico laterale

AUTOMATIC PALLET dispenser

Solaut produces automatic pallet dispenser for feeding automatic palletizing cells.

We offer our customers two models of pallet dispenser:
side-loading machines
front-loading machines. In the first the stack of pallets is inserted from the narrow side while in the second from the wide side. The exit of the pallet can occur indiscriminately from one of the three free sides (the 4th is the loading side). The automatic pallet dispenser are made for any pallet size.

Essential features are:

  • Pneumatic control.
  • Load capacity 12 pallets.
  • Pallet ejection by chain conveyor.
  • Transversal centering device for perfect pallet positioning.
