CARTESIAN INDUSTRIAL ROBOTS

Solaut produces scara industrial robots and 5 types of cartesian industriali robots. Each type of cartesian industrial machines can be provided in different sizes, that in function of the accelerations and stroke requests, can have a payload from 10 to 300 Kg. To meet special needs we make custom-made robots.

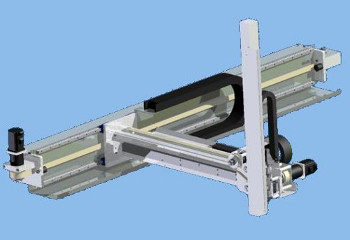

click for dedicated page Cartesian robot 2 axis servo motors

CARTESIAN ROBOT SERIES CS FROM 2 TO 6 AXES

Size	Payload up to Kg
Light	10
Medium	50
Heavy	100
Heavy 3 or 4 axis palletizing	180

The X-axis (fully constrained) is generally positioned at the top. Y has one degree of freedom and translates along the axis X. Z moves transversely to Y, and also along the same axes. This category industrial robots has only Z to be inserted in the space served; this feature requires the availability of a space of equal size to allow movement of the axis Z. The gripping element is at the end of Z.

For more details go to the dedicated page by clicking here.

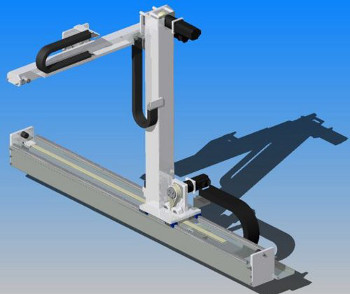

click for dedicated page Cartesian column robot

CARTESIAN ROBOT SERIES CC, FROM 2 TO 6 AXES

Size	Payload up to Kg
Light	10
Medium	60
Heavy	120
Heavy 3 or 4 axis palletizing	150

X (axis bound to the ground) is generally positioned at the bottom. Z has one degree of freedom and translates along X. Z moves only along X. This category of industrial robots has not axes protruding from the space served. The gripping element is constrained to the carriage that translates along Y. The positioning of the gripper may be limited by collisions of the Z axis with other objects occupying the space served.

For more details go to the dedicated page by clicking here.

click for dedicated page Mettipallet 0-90 rotazione pneumatica

Mettipallet 0-90� con rotazione elettrica del braccio

CARTESIAN ROBOT SERIES CD, FROM 2 TO 6 AXES

Taglia	Payload up to Kg
Light	10
Medium	50
Heavy	100

X (axis constrained to earth) is generally positioned at the top. Y has two degrees of freedom and moves along X and across it. Z moves transversely to Y, at the end of the same axis. This category of industrial Cartesian robots has the only Z axis to fit into the space served; this feature requires the availability of a space of equal size to allow the movement of Z. The gripping element is at the end of the Z axis.

For more details go to the dedicated page by clicking here

click for dedicated page Mettipallet 0-90 rotazione pneumatica

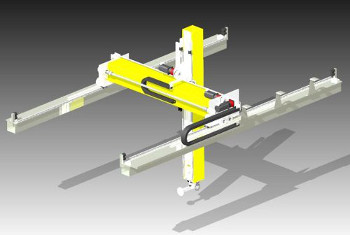

functional diagram of the cartesian gantri robot

GANTRI CARTESIAN ROBOT SERIES CP, FROM 2 TO 6 AXES

Size	Payload up to Kg
Light	10
Medium	60
Heavy	120
Heavy 3 or 4 axis double girder	300

Series of industrial robots with axis X realized with two parallel axes typically at the top. Y has one degree of freedom: runs along X and has the extremes bound to X. Z has two degrees of freedom: translates along Y and transversely to the same axis. The gripping element is at the end of Z.

For more details go to the dedicated page by clicking here

click for dedicated page

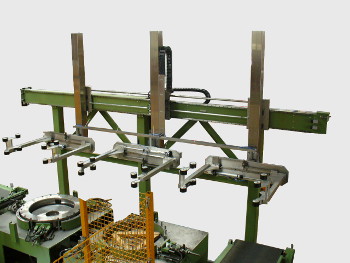

Cartesian custom robot designed for handling cardboard drums.

CUSTOM MADE ROBOT

To meet special manipulation and handling needs, we build custom-made robots. The robot can be customized both mechanically and electrically. Mechanically you can create robots with combinations of axes at will. Electrically we can use the engines and control devices that best meet the customer's needs.

For more details go to the dedicated page by clicking here
