homepage / palletizer / Palletizer PCS

CARTESIAN PALLETIZER PCS SERIES
WITH VERTICAL PROTRUDING AXIS.

The PCS Cartesian palletizer consists of a parellelepipedal frame above which a cartesian gantry robot moves.

Download the pdf catalog of cartesian palletizers PCS Logo Pdf

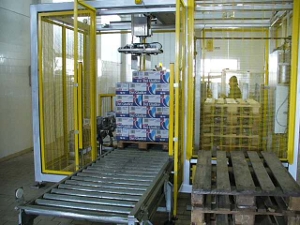

click for more images Solaut Cartesian palletiser inserted in the milk bottling department packaging cell.

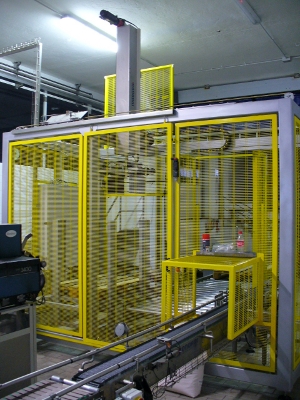

The palletizer has the vertical axis of the robot protruding from the machine frame: the vertical space necessary for the installation of the palletiser is greater than the height of the frame plus the stroke of the vertical axis of the robot. Having no perimeter mechanical parts, it allows maximum freedom of access and positioning of the conveyors. It can be realized with single, double or triple pallet position. The second and third pallet positions can be used for a second palletizing station, for a pallet or slip sheet warehouse.
In the versions with palletizing height greater than 1500mm the vertical axis can be telescopic to reduce the vertical dimensions.


Schema di selezione del robot cartesiano standard: scegli numero assi, azionamenti, controllore robot.

Robot industriale cartesiano a 3 assi serie CS taglia leggera asse X a terra trasmissione a cinghia


Features PCS Cartesian palletizers

  • Two sets of models with different orientation of the pallet, longitudinal and transverse.
  • The series cross is made with 1, 2 or 3 pallet positions.
  • Suitable for installation of gripper for picking of pallet and slip sheet.
  • Rotation of the gripper by means of pneumatic actuator (0-90) or with an electric servomotor.
  • Versions with servo motors and productivity by up to 14 pick per minute.
  • Low cost versions, with induction motors and inverter, with productivity up to eight pick per minute.
  • For palletizing heights, higher than 1500mm, the vertical axis may be telescopic.
  • Versions with servo motors, controlled by PLC Siemens S7-300.
  • Versions with inverter and induction motors controlled by PLC Lenze c300.
  • Operator panel, touch screen 7" color.
  • Frame made of tubular steel powder-coated.
  • Servo motors connected to the PLC with Profibus fieldbus.
  • Linear movements are made with recirculating ball-bearing linear guides.
  • Max lifting weight 60Kg - 100Kg with gripper.
  • Maximum palletizing height: 1800mm.
  • Perimeter protection in powder-coated steel mesh.
  • Side security exit pallet, with safety light curtain and muting device.
