Solaut produces automatic sheet loader for paper, plastic metal cardboard sheets .
The models we propose are used in the feeding of cutting and printing flat bed plotter, printing and screen printing machines,
mounting and gluing machines.
The loader of the figure on the side allows the pick of the sheet from the stack
and its positioning on the table of the operating machine.
The processed sheet is removed from the table and placed in the stack of processed sheets.
The column sheet loader is equipped with two servomotors: one for the vertical translation of the sheet hooking arm
and one for the rotation of the arm.
The column sheet loader can be supplied complete with support structures for the sheets to be processed and processed.

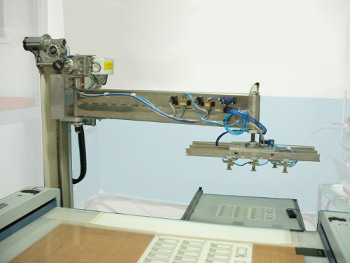

This machine is shown in the photo alongside and in the first video of the page.
The arm carrying the sheet picking head can rotate from -45 ° to + 45 °,
being able to position itself in any point of the stroke.
A second articulated arm prevents the gripping head from rotating during rotation of the arm.
By moving a pin on the fixing plate of the gripping head,
it is possible to rotate the gripping head together with the arm: in this case,
rotating the arm by 90°, one also obtains a 90° rotation of the gripping head.
Essential features:
Maximum arm rotation 90°
Arm length (operating radius) from 1000 to 1700
Maximum linear stroke from 1400 to 2400mm
Movements made with two 400 and 750W servomotors
Gripping head with suction cups or suction plates
Vertically floating gripping head
COLUMN SHEET LOADER 0-270

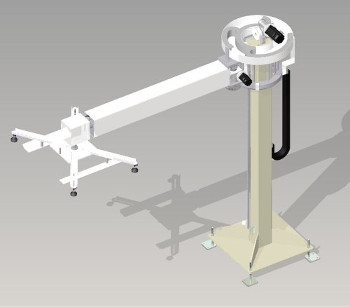

The arm that carries the gripping head of the sheet can rotate 270°,
being able to position itself in any point of the stroke.
Thanks to a mechanical transmission, the gripping head of the sheet does not rotate during the rotation of the arm.
The gripping head of the sheet can translate along the axis of the arm with a pneumatic actuator:
the stroke can vary from 0 to 400mm.
Caratteristiche esenziali:
Maximum arm rotation 270 °
Arm length (operating radius) from 1200 to 2000
Max linear actuator pneumatic stroke 400mm
Movements made with two 400 and 750W servomotors
Gripping head with suction cups or vacuum table
Vertically floating gripping head
SHEETS GRIPPING DEVICE
For gripping the sheets we make suction cup gripping devices or vacuum table grippers.
Models made:
Adjustable suction cup gripping plate
Plate with matrix of self-excluding suction cups
Double head for quick change
Piani aspiranti

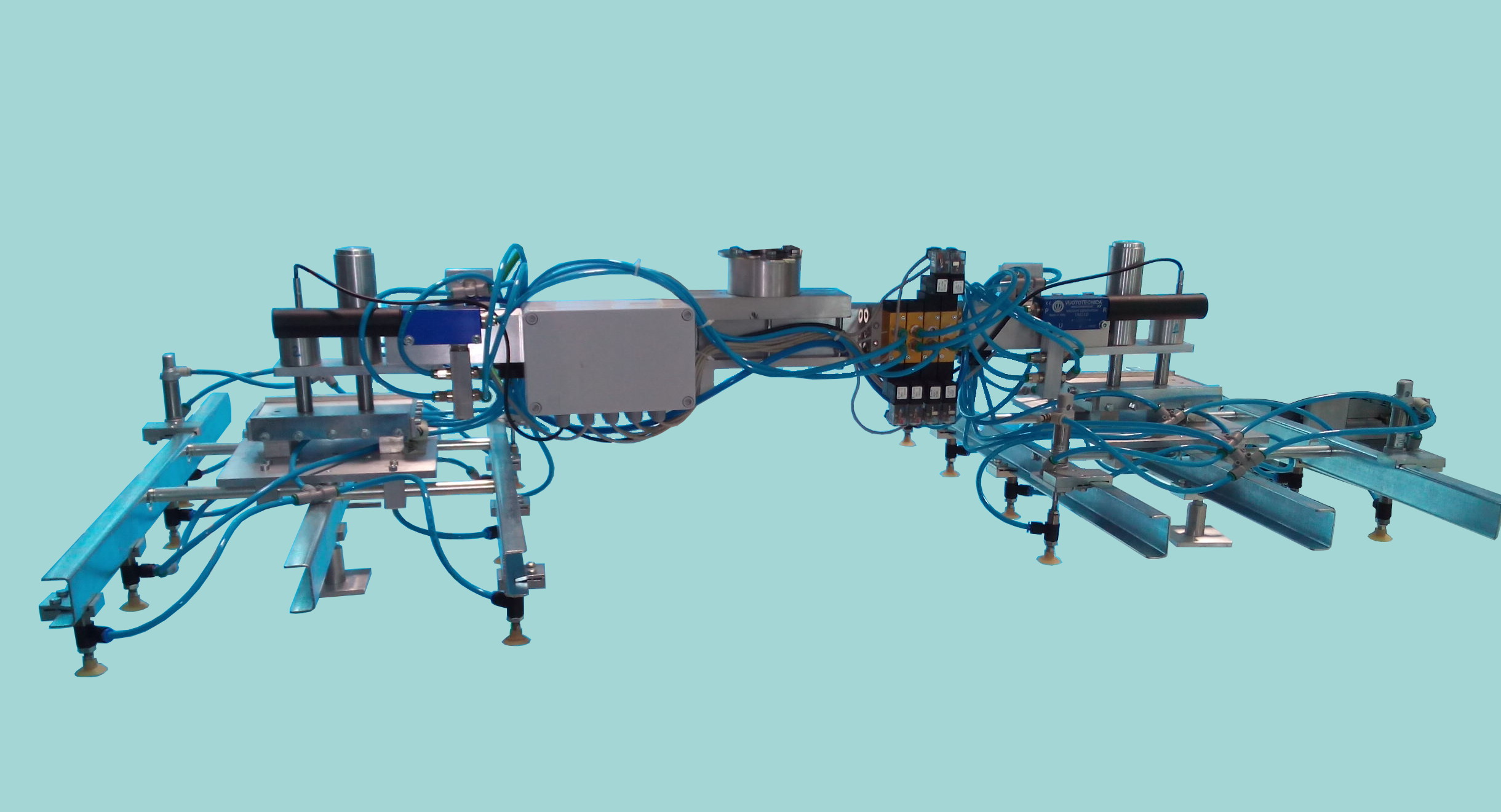

The double head gripping device allow the quick change of the worked sheet with the virgin one to be processed.
